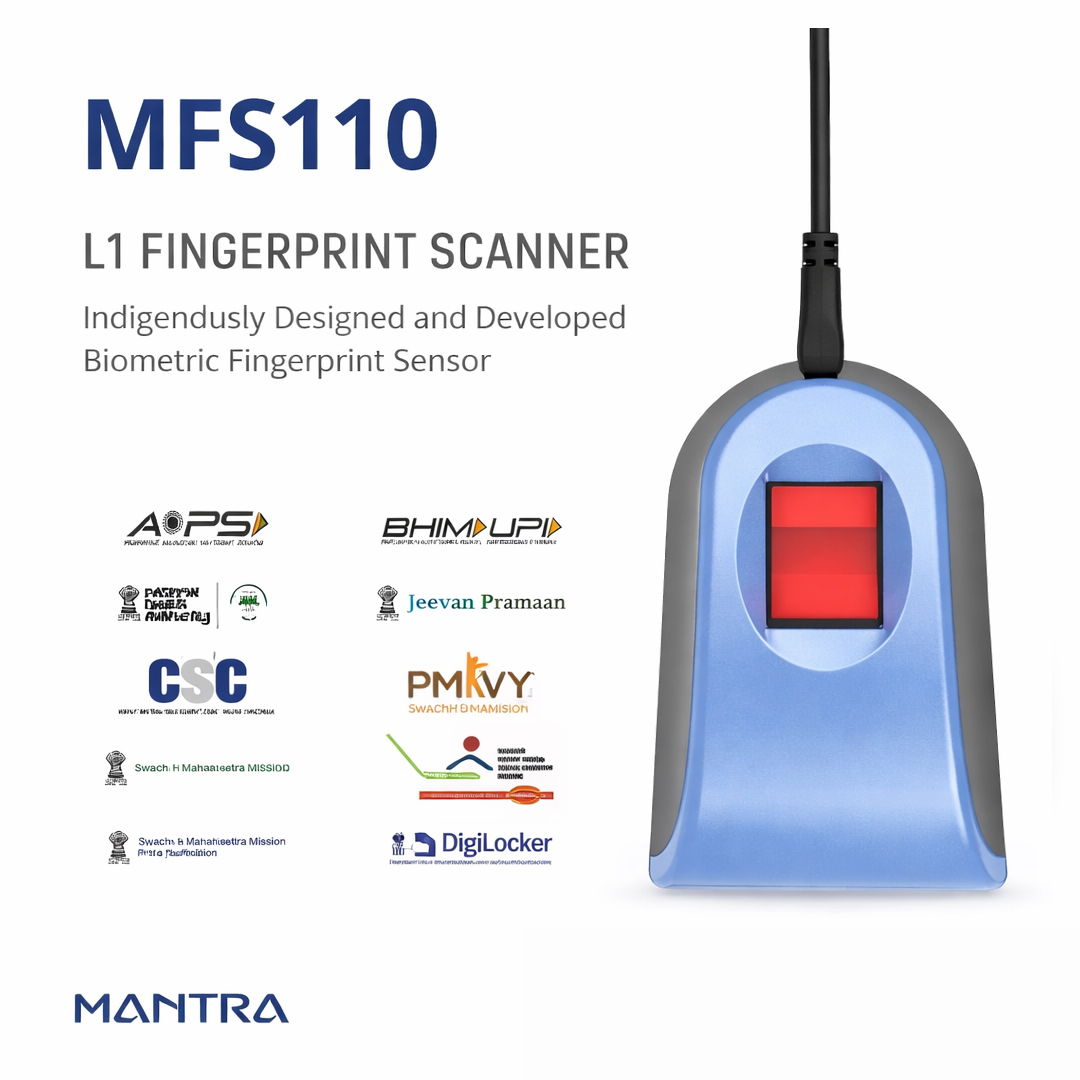

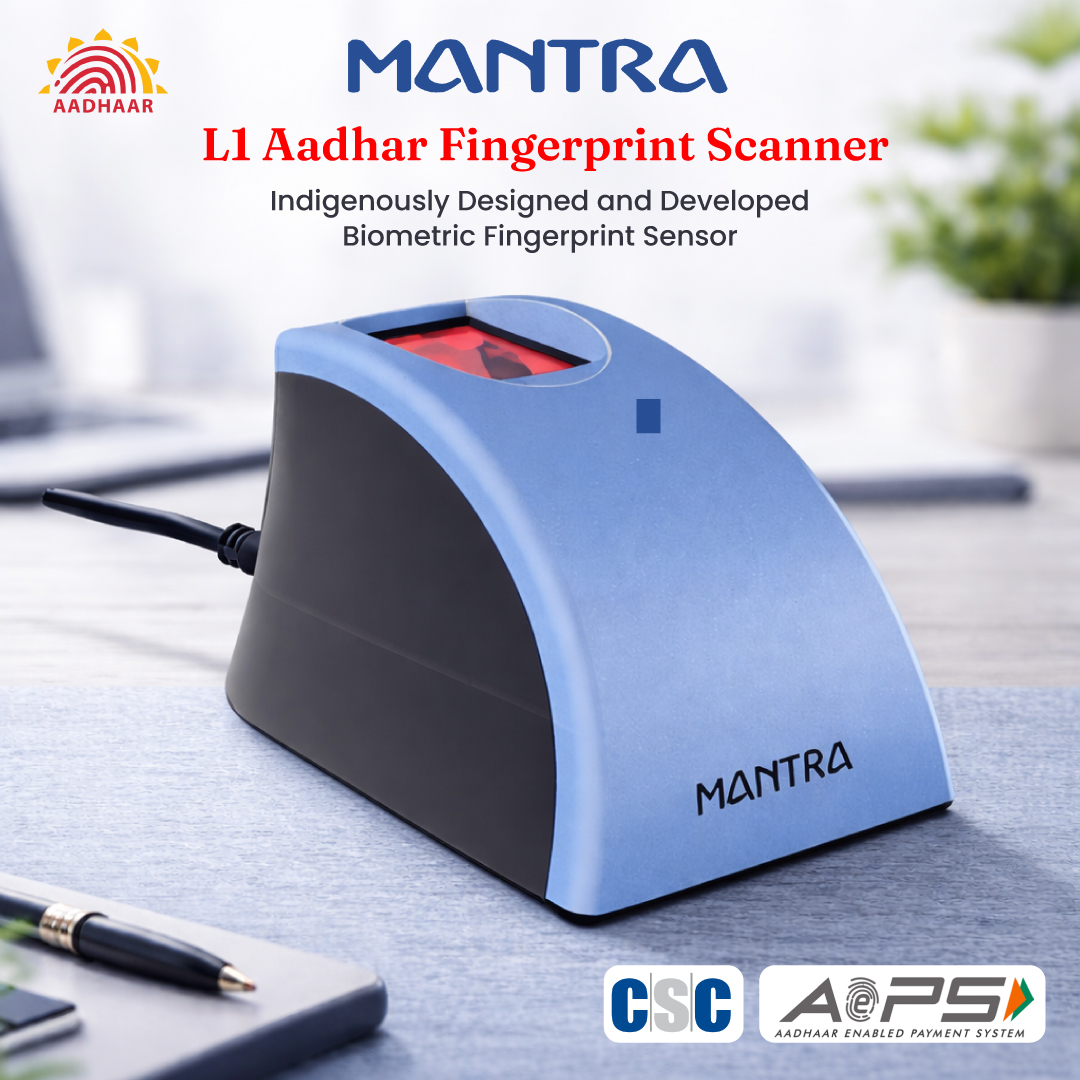

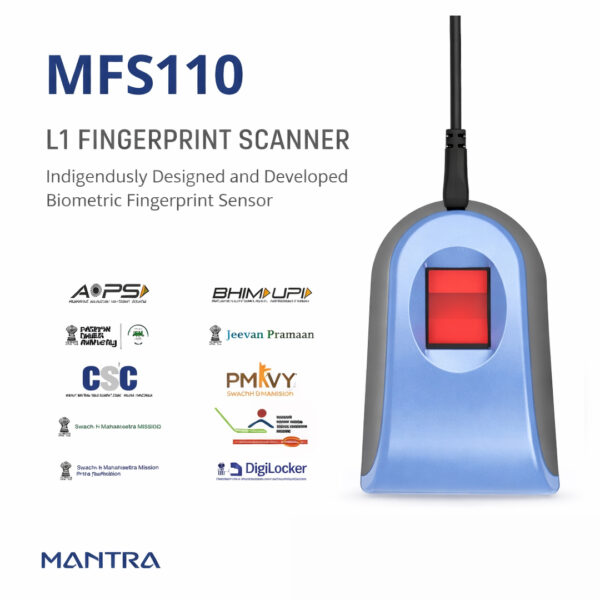

This optical fingerprint scanner delivers high-quality performance even when scanning rough, dry, or dusty fingers. It has been developed for demanding environments such as law enforcement, border control, IT security, and national identity programs. With advanced encryption technology and an ergonomic design, the MFS110 provides secure and efficient biometric operations suitable for field use.

The MFS110 is a compact and elegant fingerprint device used for identification, verification, and authentication purposes. It ensures secure biometric data handling and reliable recognition using unique fingerprint technology. The device is quick, user-friendly, and can serve as a secure alternative to passwords or PIN-based authentication methods.

---

Key Features

• Scratch-resistant sensor surface

• High-speed USB 2.0 connectivity with secure data transmission

• MINEX-compliant extractor

• Automatic finger detection

• Low FAR (False Acceptance Rate) and FRR (False Rejection Rate)

• 500 DPI optical fingerprint sensor

• Compatible with Windows operating systems

• Supports Android platforms

• Supports Linux operating systems

---

Sensor Specifications

• Sensor Type: Optical Fingerprint Sensor

• Resolution: 500 DPI ± 2%

• Platen Area: 14.0 mm × 17.0 mm

• Image Size: 276 × 336 pixels

• Grayscale: 256 levels (8-bit)

• Light Source: Red LED

• Weight: Approx. 0.140 kg

• Acquisition Time: Less than 2 seconds (placement to template)

• FAR: < 0.0001% (1 in 1,000,000)

---

Capture Mode

Automatic capture with integrated quality assessment, incorporating NIST quality standards to ensure accurate fingerprint acquisition.

---

Security Features

• Cryptographic Operations: Hardware-based RSA 2048 key generation, AES-GCM-256 encryption, SHA-256 hashing, and TRNG support

• Secure Memory: Trusted Execution Environment (TEE) with key wrapping capability

• Secure Boot: Device-level secure boot protection
